TRIPLE-MONITOR USB4 DOCK - USB-C DOCK 4K 60HZ 100W CHARGING product photo
Startech

TRIPLE-MONITOR USB4 DOCK - USB-C DOCK 4K 60HZ 100W CHARGING

StarTech.com Triple-Monitor USB4 Docking Station, 4K 60Hz HDMI or DisplayPort, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless, Wired, USB4, 100 W, 3.5 mm, 10,100,1000,2500 Mbit/s, Grey

MSRP

$370.01

Quantity

Get a real, competitive price from a Dataworld account manager, usually the same day.

View your quote request

Product identifiers

SKU
150N-USB4DOCK-TRIPLE
UPC
0065030899024
Category
Cables

Overview

StarTech.com Triple-Monitor USB4 Docking Station, 4K 60Hz HDMI or DisplayPort, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless. Connectivity technology: Wired, Host interface: USB4, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Grey, Data transfer rate: 40 Gbit/s, HD type: 4K Ultra HD. Power source type: DC, AC input voltage: 110 - 240 V, Input current: 2.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Other operating systems supported: ChromeOS

Key features

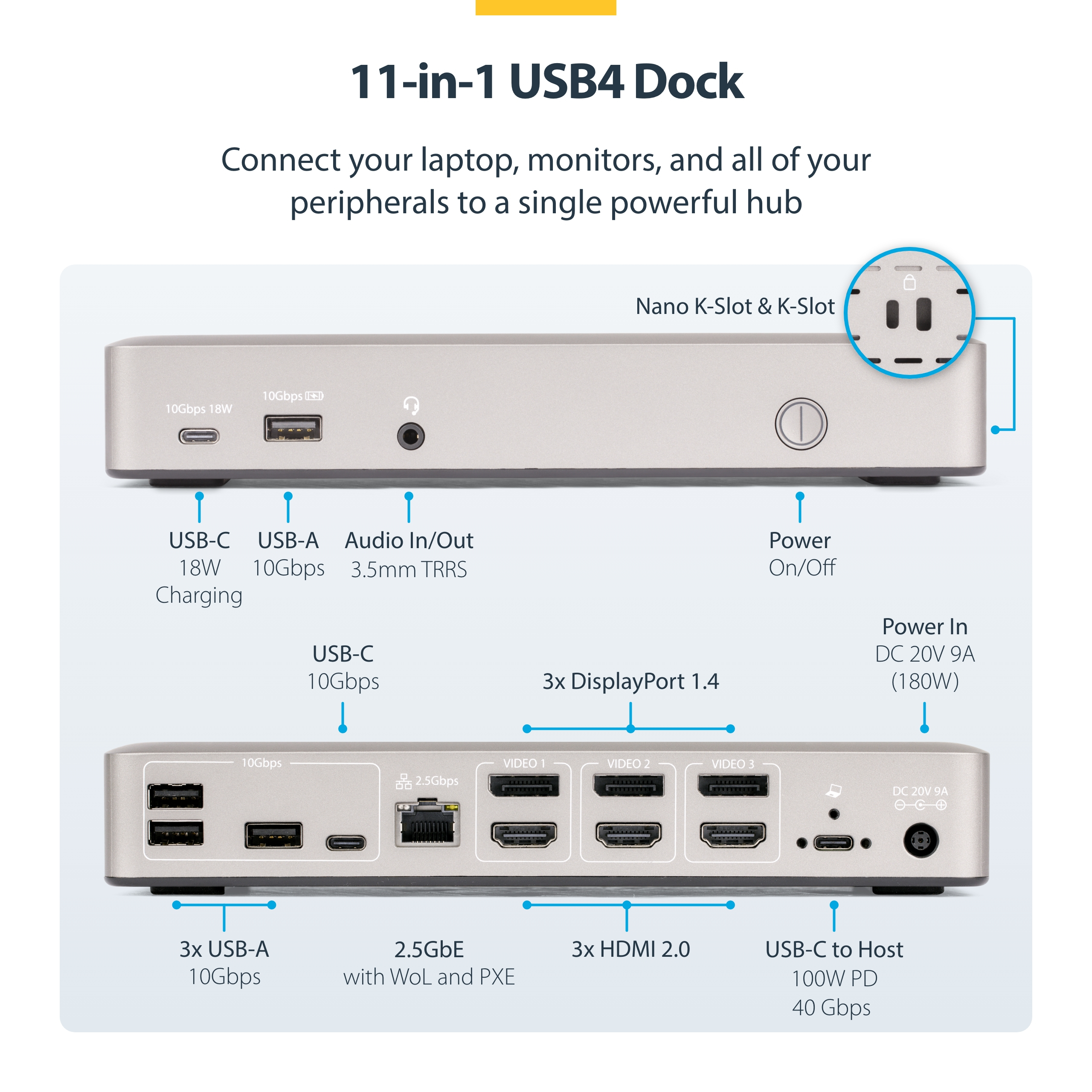

  • <b>Triple 4K60 over USB4</b>: Connect up to three 4K 60Hz displays through a single USB4 or Thunderbolt 4 port with uncompressed video powered by your laptop's native GPU; Drive demanding workflows with high-performance visuals and no software compression
  • <b>Driverless Deployment</b>: Plug-and-play on Windows and ChromeOS with no drivers or software to install (not compatible with macOS); Engineered for scalable zero-touch rollouts across shared workspaces, corporate, and BYOD environments
  • <b>2.5G Ethernet for High-Speed Networking</b>: Transfer large files or work directly from cloud environments with a reliable 2.5GbE connection; Supports PXE Boot and Wake-on-LAN for IT-managed deployments
  • <b>Mounting and Security</b>: Multi-monitor dock features built-in lock slots for physical security; Supports surface or VESA mounting to keep the dock secured and out of the way (mounting accessories sold separately: SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA)
  • <b>The IT Pro's Choice</b>: Our docking stations are rigorously tested in our Innovation Lab to ensure enterprise-grade reliability and cross-platform compatibility; Built to support large-scale deployments, Windows 11 upgrades, and the shift to AI-enabled PCs

Specifications

Ports & interfaces

Connectivity technology
Wired
Host interface
USB4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
HDMI ports quantity
3
HDMI version
2.0
DisplayPorts quantity
3
DisplayPort version
1.4
Combo headphone/mic port
Yes
Headphone outputs
1
Headphone connectivity
3.5 mm
DC-in jack
Yes

Network

Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Full duplex
Yes

Performance

Card reader integrated
No
Data transfer rate
40 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
3
Cable lock slot
Yes
Cable lock slot type
Kensington, Nano
Product colour
Grey
On/off switch
Yes
UASP support
Yes
Housing material
Plastic
Mean time between failures (MTBF)
10000 h

Power

Power source type
DC
AC input voltage
110 - 240 V
Input current
2.5 A
Output voltage
20 V
Output current
9 A
Power consumption (max)
180 W
Compatible power plug types
US

Software

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Other operating systems supported
ChromeOS

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
95 mm
Depth
210 mm
Height
34 mm
Weight
440 g

Packaging data

Package width
145 mm
Package depth
235 mm
Package height
99 mm
Package weight
1.4 kg

Packaging content

Quick start guide
Yes

Logistics data

Products per master (outer) case
8 pc(s)
Master (outer) case width
310 mm
Master (outer) case length
380 mm
Master (outer) case height
285 mm

Other features

Chipset
VIA - VL830, VIA - VL163, VIA - VL162 VIA - VL105, Realtek - RTL8156BS, Realtek - ALC4030U, Parade - PS8469, Realtek - RTD2188
