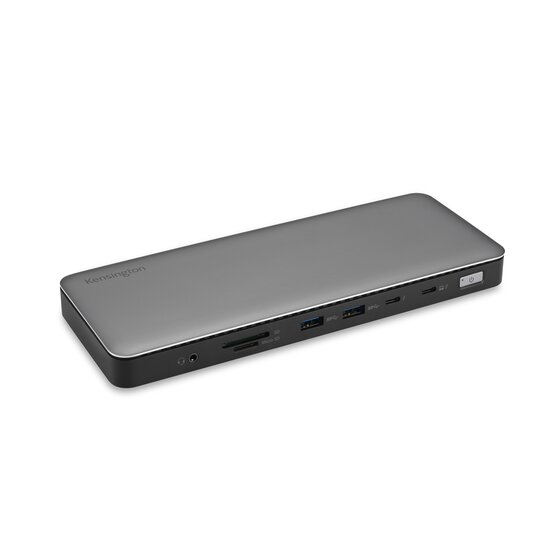

SD5760T THUNDERBOLT 4 DOCKING

Overview

Kensington SD5760T Thunderbolt™ 4 Dual 4K Docking Station – 96W PD – Windows/macOS. Host interface: Thunderbolt 4, USB Power Delivery up to: 96 W. Ethernet LAN data rates: 100,1000 Mbit/s. Compatible memory cards: SD, MicroSD (TransFlash), Data transfer rate: 40 Gbit/s, HD type: 8K Ultra HD. Other operating systems supported: ChromeOS. Quantity per pack: 1 pc(s), Package width: 108 mm, Package depth: 242 mm

Key features

• Offers a quick and powerful plug-and-play solution for Thunderbolt 4, Thunderbolt 3, and USB4 devices running Windows (10 or later) or macOS (11 or later).
• Transfer up to 40Gbps of data video and audio - all through the included 0.8m (2.6’) Thunderbolt 4 cable.
• Supports up to Single 8K @ 60Hz via a Thunderbolt 4 port when DSC is enabled or Dual 4K @ 60Hz via two HDMI ports. Supports Dual 4K @ 60Hz via two HDMI ports for MacBook models with M4/M5 Base chipsets, M1/M2/M3/M4 Pro chipsets, and M1/M2/M3/M4 Max chipsets. MacBook models with M1/M2 base chipsets or USB-C Alt Mode laptops support only a single external display.
• Supports up to 96W of Power Delivery and automatically adjusts for optimal performance
• 2 x HDMI ports, 1 x Thunderbolt 4 port, 1 x Thunderbolt 4 host port, 1 x USB-C 3.2 Gen2 10Gbps port, 2 x USB-A 3.2 Gen2 10Gbps ports, 2 x USB-A 3.2 Gen1 5Gbps ports, 1 x Gigabit Ethernet* port, 1 x audio combo jack and UHS-II 4.0 SD/Micro SD card readers.
• Built in UHS-II SD and Micro SD card readers are perfect for graphic designers, video editors and animators requiring fast and efficient data transfer speeds.
• Zero footprint mounting option maximizes desktop space and reduces cable clutter by mounting your docking station out of the way.
• Protect your investment with a Kensington cable lock (K65020 or K65021, sold separately).
• Enjoy peace of mind knowing your covered by Kensington with a professional 3-year limited warranty.
• *This dock supports the Gigabit Ethernet standard which provides a maximum data rate of 1Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches, and the hardware and firmware performance of the host computer.
