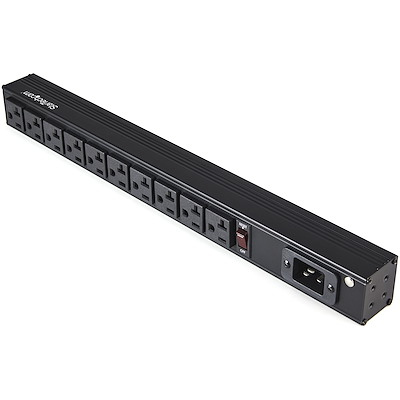

POWER STRIP RACKMOUNT 10OUT product photo
Startech

POWER STRIP RACKMOUNT 10OUT

StarTech.com 10 Outlet Rack Mount Power Strip 125V/16 Amp - 1U Horizontal 19" Rackmount PDU - NEMA 5-20P Input - 10x NEMA 5-15/20R Outlets - Rack Mount PDU - UL Listed - 8ft Power Cord, 1U, Horizontal, Black, 10 AC outlet(s), C19 coupler, NEMA 5–20R, C20 coupler

MSRP

$134.26

Quantity

Get a real, competitive price from a Dataworld account manager, usually the same day.

View your quote request

Product identifiers

SKU
RKPW101920
UPC
0065030886963
Category
Power Protection / UPS

Overview

StarTech.com 10 Outlet Rack Mount Power Strip 125V/16 Amp - 1U Horizontal 19" Rackmount PDU - NEMA 5-20P Input - 10x NEMA 5-15/20R Outlets - Rack Mount PDU - UL Listed - 8ft Power Cord. Rack capacity: 1U, Mounting: Horizontal, Product colour: Black. AC outlets quantity: 10 AC outlet(s), AC outlet types: C19 coupler, NEMA 5–20R, Power plug: C20 coupler. Cable length: 2.4 m. Nominal input voltage: 125 V, Maximum current: 20 A, Nominal output voltage: 125 V. Compliance certificates: RoHS

Key features

  • 10 OUTLET RACK MOUNT POWER STRIP: 10x 5-15/20R Outlets; 16 Amps; Max Input & Output: 125V; 8ft. NEMA 5-20P Power Cord; UL Listed PDU; For 19"" Racks/Cabinets; Front-Facing Power Switch; Horizontal Mount
  • 20 AMP CIRCUIT BREAKER: This 10 outlet rackmount power strip features a built-in 20A circuit breaker, with included 8 ft long NEMA 5-20P to IEC 60320 C19 power cord
  • EASY INSTALLATION: The rack-mount PDU with metal housing supports 19 inch rack 1U horizontal installation, and meets ANSI/EIA RS-310-D standards
  • BROAD COMPATIBILITY: 1U horizontal rack-mounted power distribution unit fits many network / data 2-post and 4-post racks; Compatible with 19"" server racks with minium 4"" (10.2cm) depth
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this rack mountable power bar is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance

Specifications

Design

Rack mounting
Yes
Rack capacity
1U
Mounting
Horizontal
Product colour
Black
On/off switch
Yes

Ports & interfaces

AC outlets quantity
10 AC outlet(s)
Power plug
C20 coupler
AC outlet types
C19 coupler, NEMA 5–20R

Features

Cable length
2.4 m

Power

Nominal input voltage
125 V
Maximum current
20 A
Nominal output voltage
125 V
Output voltage
125 V
Load capacity
2500 VA
Maximum input current per phase
20 A

Certificates

Compliance certificates
RoHS

Sustainability

Sustainability certificates
UL ECOLOGO

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
445 mm
Depth
130 mm
Height
50 mm
Weight
1.2 kg

Packaging content

Cables included
AC
Manual
Yes
Packaging content
8 ft NEMA 5-20P to IEC 60320 C19 Power Cord

Packaging data

Package weight
1.2 kg
Package width
450 mm
Package depth
132 mm
Package height
60 mm

Logistics data

Master (outer) case width
492 mm
Master (outer) case length
350 mm
Master (outer) case height
292 mm
Products per master (outer) case
10 pc(s)
