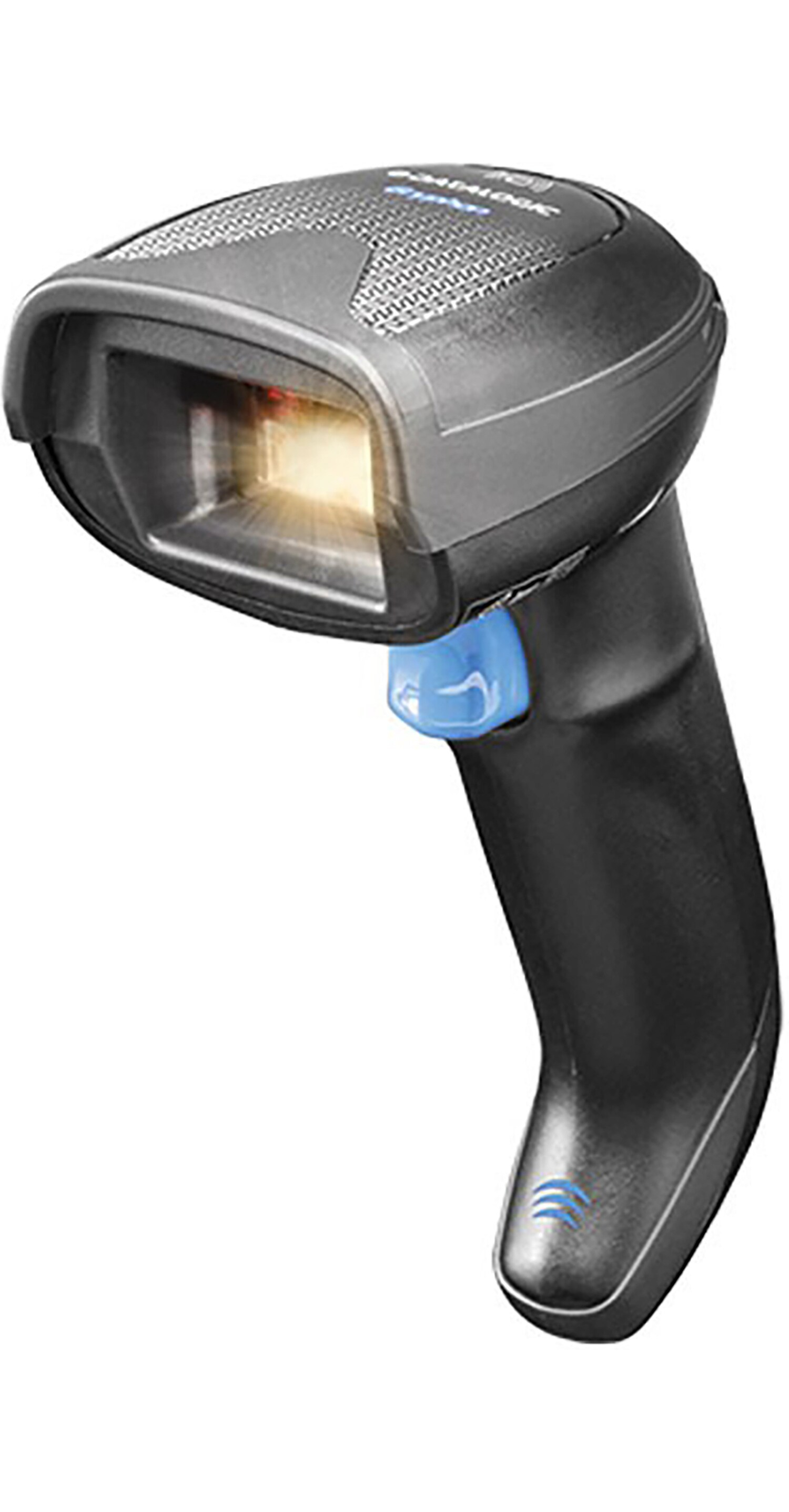

GRYPHON GBT4500 2D WRLS BCS product photo
HP

GRYPHON GBT4500 2D WRLS BCS

HP Datalogic Gryphon GBT4500 2D Wireless Barcode Scanner, Handheld bar code reader, 1D/2D, Laser, GS1 DataBar, Aztec Code, Han Xin, Data Matrix, MaxiCode, Micro QR Code, QR Code, DotCode, 1280 x 800 pixels

MSRP

$270.00

Quantity

Get a real, competitive price from a Dataworld account manager, usually the same day.

View your quote request

Product identifiers

SKU
4P886AA
UPC
0196188079164
Category
Data Capture/Pos

Overview

HP Datalogic Gryphon GBT4500 2D Wireless Barcode Scanner. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired & Wireless, Standard interfaces: RS-232, USB. Product colour: Black, International Protection (IP) code: IP52, Image formats supported: BMP, JPEG, TIFF. Power source type: Battery, Battery type: Built-in battery, Input voltage: 4.5 - 14 V. Weight: 235 g, Width: 166 mm, Depth: 68 mm

Specifications

Scanning

Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
Laser
Linear (1D) barcodes supported
GS1 DataBar
2D (matrix & stacked) barcodes supported
Aztec Code, Han Xin, Data Matrix, MaxiCode, Micro QR Code, QR Code, DotCode
Optical sensor resolution (W x H)
1280 x 800 pixels
Wavelength
650 nm
Tilt reading angle
0 - 360°
Pitch reading angle
-65 - 65°
Yaw reading angle
-65 - 65°

Ports & interfaces

Connectivity technology
Wired & Wireless
Standard interfaces
RS-232, USB

Performance

International Protection (IP) code
IP52
Image formats supported
BMP, JPEG, TIFF
Product colour
Black
Country of origin
Vietnam

Power

Power source type
Battery
Battery type
Built-in battery
Input voltage
4.5 - 14 V

Weight & dimensions

Width
166 mm
Depth
68 mm
Height
109 mm
Weight
235 g

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%

Battery

Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3250 mAh

Logistics data

UNSPSC-code
43211701
