Allied Telesis

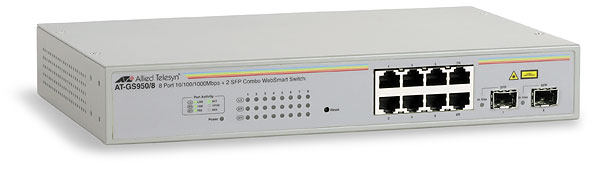

8PORT 10/100/1000BT GB WEBSMART
Allied Telesis AT-GS950/8, Managed
MSRP
$333.93
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- AT-GS950/8-10
- UPC
- 0767035181301
- Category
- Network Devices
Overview
The Allied Telesis 8PORT 10/100/1000BT GB WEBSMART is a managed networking switch that delivers Gigabit Ethernet connectivity across eight ports. As a web-smart managed switch, it provides essential management and monitoring capabilities through an intuitive web interface, making it well suited for Canadian businesses seeking reliable, cost-effective network infrastructure without the complexity of enterprise-class platforms. The switch supports standard Ethernet devices and is compatible with typical network environments that rely on 10/100/1000 Mbps connectivity. Allied Telesis is an established networking manufacturer trusted by resellers and businesses across Canada. Dataworld is an authorized Allied Telesis reseller serving Canadian businesses in English and French. We source genuine products through authorized distribution channels and provide quotes on request, with pricing listed in Canadian dollars.
Specifications
Management features
- Switch type
- Managed
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Combo SFP ports quantity
- 2
- SFP/SFP+ slots quantity
- 2
Network
- Networking standards
- IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Port mirroring
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
Data transmission
- Supported data transfer rates
- 10/100/1000 Mbps
- MAC address table
- 4000 entries
- Maximum data transfer rate
- 1 Gbit/s
- Packet buffer memory
- 0.125 MB
Design
- Stackable
- No
Performance
- Internal memory
- 16 MB
- Flash memory
- 4 MB
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Other features
- Dimensions (WxDxH)
- 280 x 179 x 43 mm
- Connectivity technology
- Wired
- Packet transfer speed
- 1488000 pps
- Power requirements
- 100-240V AC, 50/60Hz
- Networking features
- Gigabit Ethernet
- Security features
- 802.1X
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -25 - 70 °C
- Operating relative humidity (H-H)
- 5 - 90%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Weight
- 1.61 kg
Certificates
- Certification
- UL 1950 FCC/EN55022 Class B VCCI Class B C-Tick EN60950 (TUV) EN55024 CE
