Viewsonic

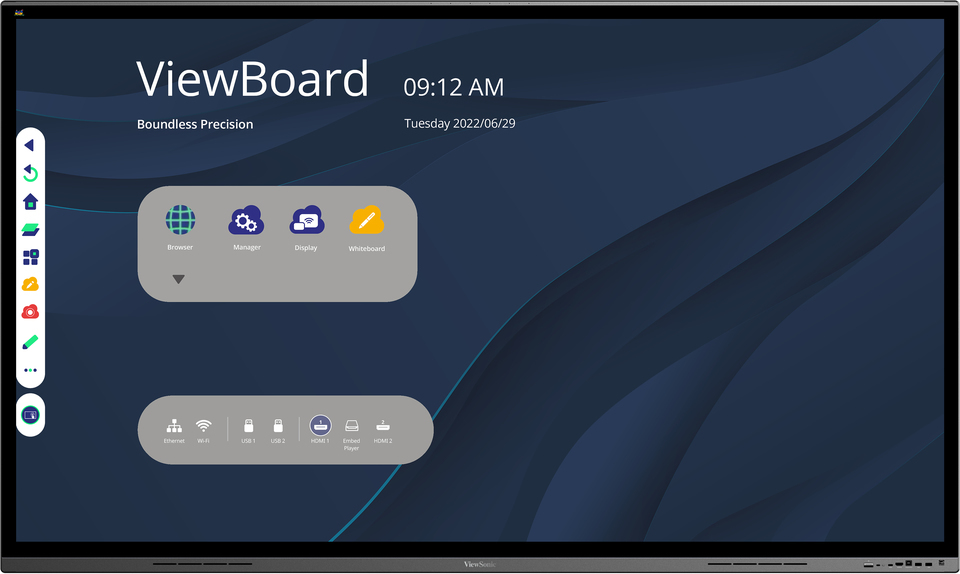

86 VIEWBOARD 4K INTERACTIVE
Viewsonic IFP8662, Interactive flat panel, 2.18 m (86"), LED, 3840 x 2160 pixels, Wi-Fi
MSRP
$20,641.62
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- IFP8662
- UPC
- 0766907012088
- Category
- Displays
Overview
The ViewSonic 86 ViewBoard 4K Interactive is a 4K touchscreen monitor in the interactive display category, built to support dynamic team collaboration and engaging presentations in corporate, educational, and creative settings. Its large 86-inch format makes it suitable for conference rooms, boardrooms, and learning spaces where groups need to view and interact with content simultaneously. The touchscreen capability enables multiple users to engage directly with the display surface, supporting a range of interactive workflows and applications. As an authorized ViewSonic reseller serving Canadian businesses from coast to coast, Dataworld sources genuine ViewSonic products through established distribution channels. We provide quotes in Canadian dollars and can respond to your specifications and budget with accurate pricing and availability details. Whether you are outfitting a single meeting space or deploying displays across multiple Canadian locations, our team is ready to support your project in English and French.
Key features
- Superb 4K UHD display panel with UFT+ technology, and 20-points multi-touch
- One-stop premium conference solution with compatible ViewSonic conference speakerphone and camera
- Comprehensive I/O ports,vCastSender,and myViewBoard display
- Built-in USB Type-C for simultaneous 65W fast charge and visual display
- Centralized IT management and content display by myViewBoard Manager
Specifications
Display
- Panel type
- TFT-LCD
- LED backlight
- Yes
- Display diagonal
- 2.18 m (86")
- Display technology
- LED
- Display resolution
- 3840 x 2160 pixels
- Display brightness
- 350 cd/m²
- HD type
- 4K Ultra HD
- Touchscreen
- Yes
- Touchscreen technology
- Ultra Fine Touch (UFT)
- Number of simultaneous touchpoints
- 20
- Multi-touch
- Yes
- Native aspect ratio
- 16:9
- Response time
- 8 ms
- Contrast ratio (typical)
- 1200:1
- Contrast ratio (dynamic)
- 5000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Display number of colours
- 1.07 billion colours
- Active display area (W x H)
- 1895.04 x 1065.96 mm
- Surface hardness
- 9H
Ports & interfaces
- HDMI ports quantity
- 5
- HDMI version
- 2.0
- HDMI input ports quantity
- 4
- HDMI output ports quantity
- 1
- DVI port
- No
- VGA (D-Sub) input ports
- 1
- USB port
- Yes
- USB ports quantity
- 9
- USB version
- 2.0/3.2 Gen 1 (3.1 Gen 1)
- USB connector type
- USB Type-A, USB Type-B, USB Type-C
- USB 2.0 Type-B ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 5
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery up to
- 65 W
- USB Type-C DisplayPort Alternate Mode
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- PC Audio in
- Yes
- Microphone in
- Yes
- RS-232 interface
- Yes
- Digital audio optical out
- 1
- PC Audio out
- Yes
- OPS module slot
- Yes
Audio
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- RMS rated power
- 24 W
Design
- Product design
- Interactive flat panel
- Placement supported
- Indoor
- Product colour
- Black
- VESA mounting
- Yes
- Bezel width (bottom)
- 6.39 cm
- Bezel width (side)
- 3.15 cm
- Bezel width (top)
- 3.88 cm
- Anti-glare screen
- Yes
Performance
- Purpose
- Universal
- HDCP
- Yes
- HDCP version
- 2.2
Power
- Power consumption (typical)
- 160 W
- Power consumption (standby)
- 0.5 W
- Power consumption (max)
- 580 W
- Energy efficiency class (SDR)
- G
- Energy consumption (SDR) per 1000 hours
- 200 kWh
- AC input voltage
- 100 - 240 V
- Energy efficiency scale
- A to G
Computer system
- Computer system
- Yes
- Computer system type
- System on Chip (SoC)
- Built-in processor
- Yes
- Processor architecture
- ARM Cortex-A73
- Processor frequency
- 1.2 GHz
- Processor cores
- 4
- Internal memory
- 3 GB
- Internal storage capacity
- 32 GB
- Operating system installed
- Android 8.0
- Windows operating systems supported
- Yes
Weight & dimensions
- Display width
- 1960 mm
- Display depth
- 80 mm
- Display height
- 1171 mm
- Display weight
- 63.7 kg
- Weight
- 63.7 kg
Packaging data
- Package width
- 2123 mm
- Package depth
- 280 mm
- Package height
- 1308 mm
- Package weight
- 84.2 kg
Packaging content
- Remote control included
- Yes
- Batteries included
- Yes
- Stylus pen
- Yes
- Number of stylus pens
- 2
- Cables included
- HDMI, Power, RS-232, USB Type-C
- Mounting kit
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 80%
Certificates
- Certification
- cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM, Mexico Energy, EMC/CE, CB/LVD, GOST-R / EAC, UkrSEPRO, UKCA, LBL, Green BOM, RoHS, ErP, REACH, SCIP, WEEE, TPCH, CA65, PAIA
Logistics data
- Products per master (outer) case
- 1 pc(s)
- Pallet gross length
- 114.3 cm
- Pallet gross width
- 2.14 m
- Pallet gross height
- 142.2 cm
- Harmonized System (HS) code
- 8528521000
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
Technical details
- OPS slot
- 1
Other features
- Manual
- Yes
- Quick start guide
- Yes
- Built-in microphone
- Yes
- Built-in subwoofer
- Yes
- Mobile operating systems supported
- Android
- Subwoofer RMS power
- 15 W
- USB 2.0 ports quantity
- 1
