Allied Telesis
48PORT 10/100TX SW W/ 4 X

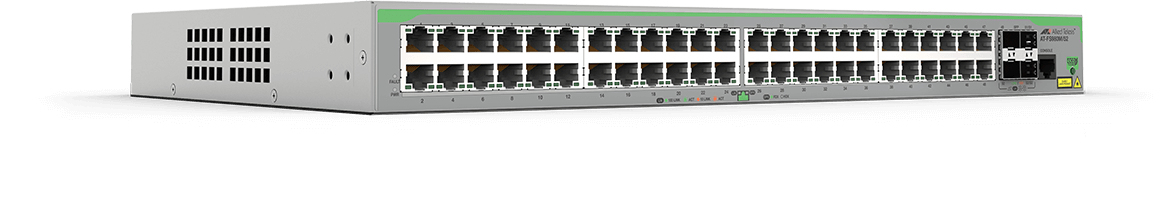

Allied Telesis AT-FS980M/52-10, Managed, L3, Fast Ethernet (10/100), Rack mounting, 1U, Wall mountable
MSRP
$1,432.32
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- AT-FS980M/52-10
- UPC
- 0767035209005
- Category
- Network Devices
Overview
Allied Telesis AT-FS980M/52-10. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 17.6 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE.... Wall mountable, Rack mounting, Form factor: 1U
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L3
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- Traffic classification
- Yes
- ARP inspection
- Yes
- System event log
- Yes
- MIB support
- RFC 1213, RFC 1212, RFC 1227, RFC 1239, RFC 2819, RFC 2863
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity
- 48
- SFP module slots quantity
- 4
- Fiber optic connector
- SFP
- Console port
- RJ-45
Network
- Networking standards
- IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX
- Port mirroring
- Yes
- Full duplex
- Yes
- IP routing
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Spanning tree protocol
- Yes
- Active link detection
- Yes
- Fast leave
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Voice VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Data transmission
- Switching capacity
- 17.6 Gbit/s
- Forwarding rate
- 13.09 Mpps
- MAC address table
- 16000 entries
- Number of queues
- 8
- Static route
- Yes
- Number of static routes
- 16
- Jumbo frames support
- Yes
- Jumbo frames
- 10000
Security
- DHCP features
- DHCP snooping, DHCP client
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- Security algorithms
- EAP, HTTPS, MD5, PEAP, SSH, SSL/TLS, TTLS
- Static port security
- Yes
- SSH/SSL support
- Yes
- Loop protection
- Yes
- BPDU filtering/protection
- Yes
- Authentication
- MAC-based authentication, Port-based authentication, Web-based authentication
- Root protection
- Yes
- Password protection
- Yes
- Authentication type
- AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS
- Neighbor discovery snooping
- Yes
Multicast features
- Multicast support
- Yes
Protocols
- Management protocols
- IGMPv1,IGMPv2,IGMPv3
- Routing protocols
- RIP, RIP-2
Design
- Rack mounting
- Yes
- Stackable
- Yes
- Form factor
- 1U
- Product colour
- Grey
- LED indicators
- Yes
- Wall mountable
- Yes
- Safety
- UL 60950-1 Ed2, C22.2 NO.60950-1, EN 60950-1 Ed2, IEC60950-1 Ed.2, EN60950-1 Ed2
Performance
- Virtual stacking (units)
- 4
- Memory type
- DDR2-SDRAM
- Internal memory
- 512 MB
- Flash memory
- 128 MB
- Noise level
- 51 dB
- Firmware upgradeable
- Yes
- Telnet
- Yes
Power
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Input current
- 1.5 A
- Power consumption (max)
- 36 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 5 - 90%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
- Heat dissipation
- 120 BTU/h
Weight & dimensions
- Width
- 440 mm
- Depth
- 257 mm
- Height
- 43.2 mm
- Weight
- 3.4 kg
Packaging data
- Package weight
- 5.6 kg
Certificates
- Certification
- FCC part15 B, EN55022 Class A, CISPR22:2006, VCCI Class A, C-Tick, EN 55024, CE, cULus, TUV
