Cyber Power

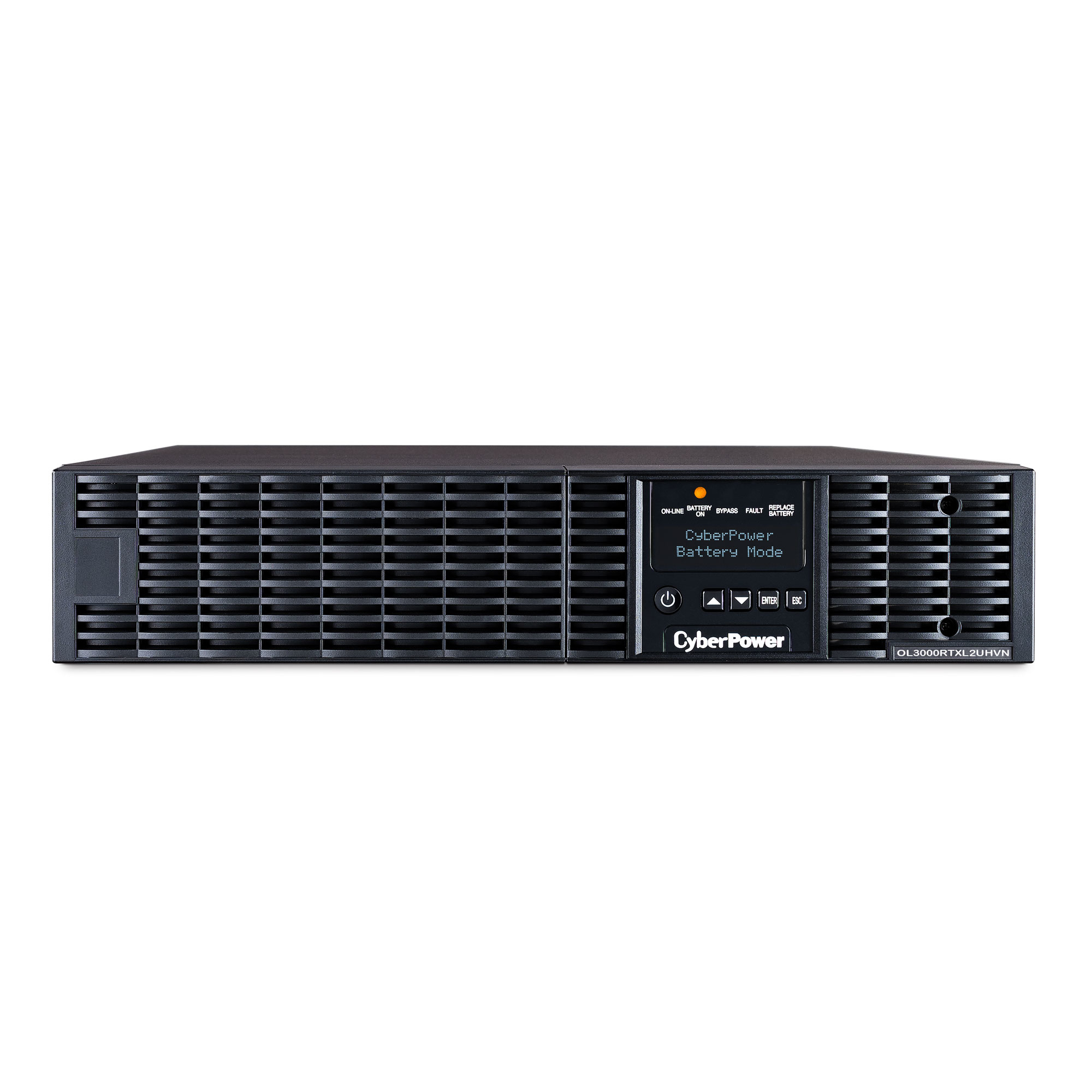

3KVA ONLINE UPS 2U SINE LCD
CyberPower OL3000RTXL2UHVN, Double-conversion (Online), 3 kVA, 2700 W, Sine, 120 V, 280 V
MSRP
$4,643.30
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- OL3000RTXL2UHVN
- UPC
- 0649532621934
- Category
- Power Protection / UPS
Overview
CyberPower OL3000RTXL2UHVN. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. Power plug: NEMA L6-30R, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Compliance certificates: RoHS
Key features
- Capacity: 3000 VA / 2700 W
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 V ±2% (configurable)
- Plug type & cord: NEMA L6-20P, 10 ft. cord
- Outlet types: 2 × NEMA L6-20R, 1 × NEMA L6-30R
- Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Waveform
- Sine
- Input operation voltage (min)
- 120 V
- Input operation voltage (max)
- 280 V
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 200 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Output frequency regulation
- 0.25 Hz
- Output voltage regulation
- 2%
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 1335 J
- Response time
- 0 ms
- Efficiency (ECO mode)
- 97%
- Input power factor
- 0.99
- Output power factor
- 0.9
- Crest factor
- 3:1
- ECO mode
- Yes
- EMI/RFI noise filtering
- Yes
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Low battery alarm, Overload alarm
Ports & interfaces
- Power plug
- NEMA L6-30R
- AC outlets quantity
- 3 AC outlet(s)
- Modem (RJ-11) ports
- 1
- Ethernet LAN (RJ-45) ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 9 Ah
- Battery voltage
- 12 V
- Number of battery cells
- 6
- Typical backup time at full load
- 3.5 min
- Typical backup time at half load
- 11 min
- Battery recharge time
- 4 h
- Hot-swap battery
- Yes
- Replacement battery cartridge
- RB1290X6A
Design
- Form factor
- Rackmount/Tower
- Housing material
- Metal
- Rack capacity
- 2U
- Cable length
- 3 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 45 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
Certificates
- Compliance certificates
- RoHS
Packaging content
- Cables included
- Input power cable
Safety regulation & standards
- Safety
- UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A
Weight & dimensions
- Width
- 432 mm
- Depth
- 600 mm
- Height
- 89 mm
- Weight
- 30.9 kg
Packaging data
- Package width
- 558.8 mm
- Package depth
- 908.6 mm
- Package height
- 234.7 mm
- Package weight
- 36.7 kg
